Lets Talk About Sets

A set is a collection of distinct objects considered as a whole.

[Wikipedia - http://en.wikipedia.org/wiki/Set ]

A set can be thought of as a collection of objects - or elements - and these objects can be anything, data - numerical - or indeed other sets. Elements in a set are in no particular order, and elements in a set must by definition be unique.

Introducing Sets

We can use a system called set builder notation to describe a set:

<br /> \mbox{Set, } S = \left\{ x \in \mbox{ Parent Set, } P \left| \mbox{ conditions } \right. \right\}<br />


For example, the following is a valid set notation for a set of the integer values from 1 to 9.

<br /> A = \left\{ x \in \mathbb{Z}^+ \left| x\mbox{ is odd } \wedge < 10 \right. \right\}<br />

Subsets

A subset is one or more element selected from a set. For an element to be a member of a subset, it must also have been a member of the parent set.

If A and B are sets, then A will be a subset of B if every element of A is also an element of B (denoted as A \subseteq B . Equivalently we can say that B is a superset of A, if B contains all the elements of A (denoted as B \supseteq A ).

<br /> \forall _x \left( {x \in A \to x \in B} \right)<br />

Proper Subset

A proper subset is one or more (but not all of the distinct) elements selected from a set. If A and B are sets, then A will be a proper subset of B if every element of A is also an element of B, but also there is one or more elements in B which are not part of A. This is denoted as A \subset B. Equivalently, B is a proper superset of A if B contains all the elements of A and more - B \supset A

<br /> \forall _x \left( {x \in A \to x \in B} \right) \wedge \exists _x \left( {x \in B \wedge x \notin A} \right)<br />

Cardinality

The cardinality of a set is how many members it contains, as shown in the examples below:

<br /> \left| \phi \right| = 0 \\<br /> \left| {\left\{ {1,2,3,4} \right\}} \right| = 4 \\<br /> \left| {\left\{ {\left\{ {1,2} \right\},\left\{ {3,5} \right\}} \right\}} \right| = 2<br />

Powerset

The powerset of a set, S is denoted as \mathcal{P}(S) is a set of all the subsets of that set. This is best explained in the example shown below:

<br /> S=\left\{ x,y,z\right\}\\<br /> \mathcal{P}(S)=\left\{ {\phi ,\left\{ x \right\},\left\{ y \right\},\left\{ z \right\},\left\{ {x,y} \right\},\left\{ {x,z} \right\},\left\{ {z,y} \right\},\left\{ {x,y,z} \right\}} \right\}<br />

Where the set s has a cardinality of n, the powerset will have a cardinality:

\left|\mathcal{P}(S)\right|=2^n

Truth Set

The truth set is the set of values for which a predicate logic statement holds true. For example, the truth set of \left\{ x \in \mathbb{Z}^+ \left| x^2 < 4 \right. \right\} is {1}.

Tuples

A tuple is a set of objects, but one in which the order of the elements is significant. For example, the set {1, 2, 3} is equal to the set {2, 1, 3} since the order of elements in a set is not important. In a tuple however, {1,2,3} would not equal {2, 1, 3}. In order for one tuple A to be equal to another B all of the elements of A a_i where _i is an index, must equal all the elements of B, b_i.

Set Operators

Cartesian Product

Where A and B are sets, the Cartesian product of the two sets is a set containing all possible pairings of elements from each of the two sets.

<br /> A = \left\{ {1,2} \right\} \\<br /> B = \left\{ {a,b,c} \right\} \\<br /> A \times B = \left\{ {\{ 1,a\} ,\{ 1,b\} ,\{ 1,c\} ,\{ 2,a\} ,\{ 2,b\} ,\{ 2,c\} } \right\}<br />

Union

The union of two sets, P and Q is a set containing all the unique items of P and Q.

A \cup B = \left\{ x \left| x \in A \vee x \in B \right. \right\}

Intersection

The intersection of two sets, P and Q is a set containing all the elements which exist in both A and B.

A \cap B = \left\{ x \left| x \in A \wedge x \in B \right. \right\}

Difference

The difference between two sets A and B is a set containing all the elements which exist only in A, not in B.

A - B = A \backslash B = \left\{ x \left| x \in A \wedge \neg\left( x \in B \right) \right. \right\}

Complement
The complement of a set is a set of all the possible elements which are not contained within the set. So if the domain is \mathbb{Z} and we have a set P with members in the domain, then \overline P = \mathbb{Z}-P

Venn Diagrams

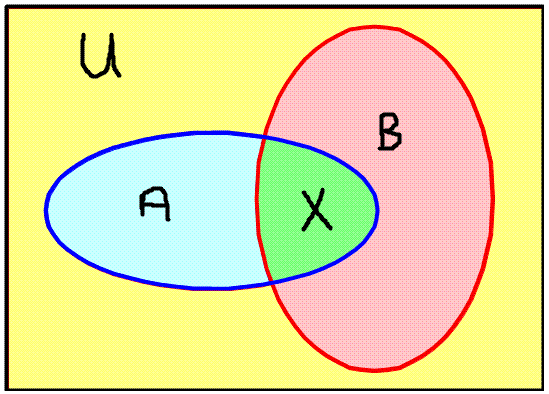

A Venn Diagram can be used to demonstrate sets and set operators. In the example below, A and B are sets are in domain of real numbers - \mathbb{R} , and from the diagram there are a number of conclusions we can draw...

<br /> X=A \cap B \\<br /> U= \mathbb{R} - \overline{A\cup B} \\<br /> \left| A \cup B \right| = \left|A\right| + \left|B\right| - \left|A \cap B \right|<br />

Rules involving Sets

  • De-Morgan's theory applies to sets, this is discussed in more detail [Here]
  • Order of processing operations is not important, \left( {A \cup B} \right) \cup C = A \cup \left( {B \cup C} \right)
  • Identity Law: A \cup \phi = A
References:
  • Nick Holliman - Formal Aspects Set Theory - Lecture 3
  • Nick Holliman - Formal Aspects Set Theory - Lecture 4
  • Nick Holliman - Formal Aspects Set Theory - Lecture 5
  • Nick Holliman - Formal Aspects Set Theory - Lecture 6
  • Nick Holliman - Formal Aspects Set Theory - Lecture 7
  • Discrete Mathematics and its Applications - Kenneth H Rosen - Sixth Edition
